AQUALUNG HELIX PRO YOKE
Key Features
About Aqualung Helix Pro Yoke Regulator

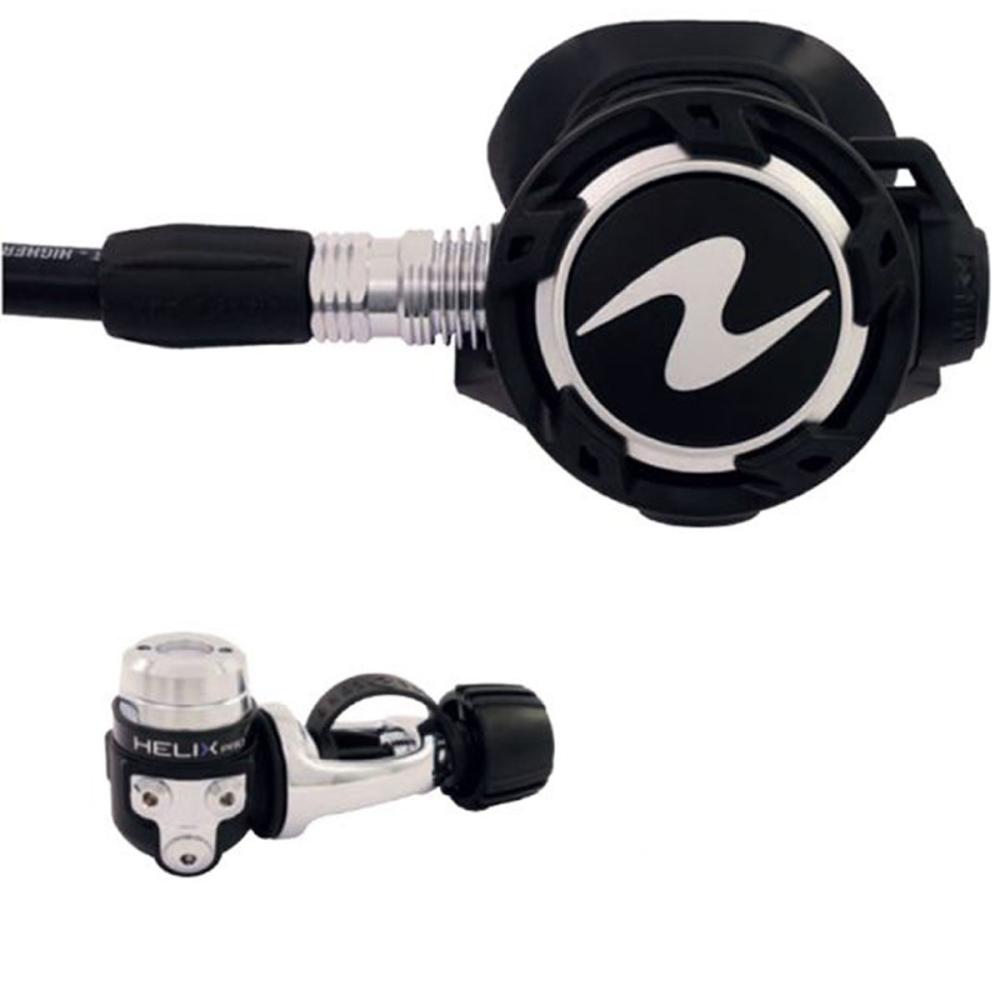

Aqualung Helix Pro Regulator
The Helix Pro mid-range regulator with balanced first and second stages. The Helix Pro represents the DNA of Aqualung regulators. It is certainly the best value for the coming years. It benefits from the patented ACD technology - the first stage is fully protected, even when the regulator is not under pressure. The Aqualung Helix Pro can be serviced every 2 years.

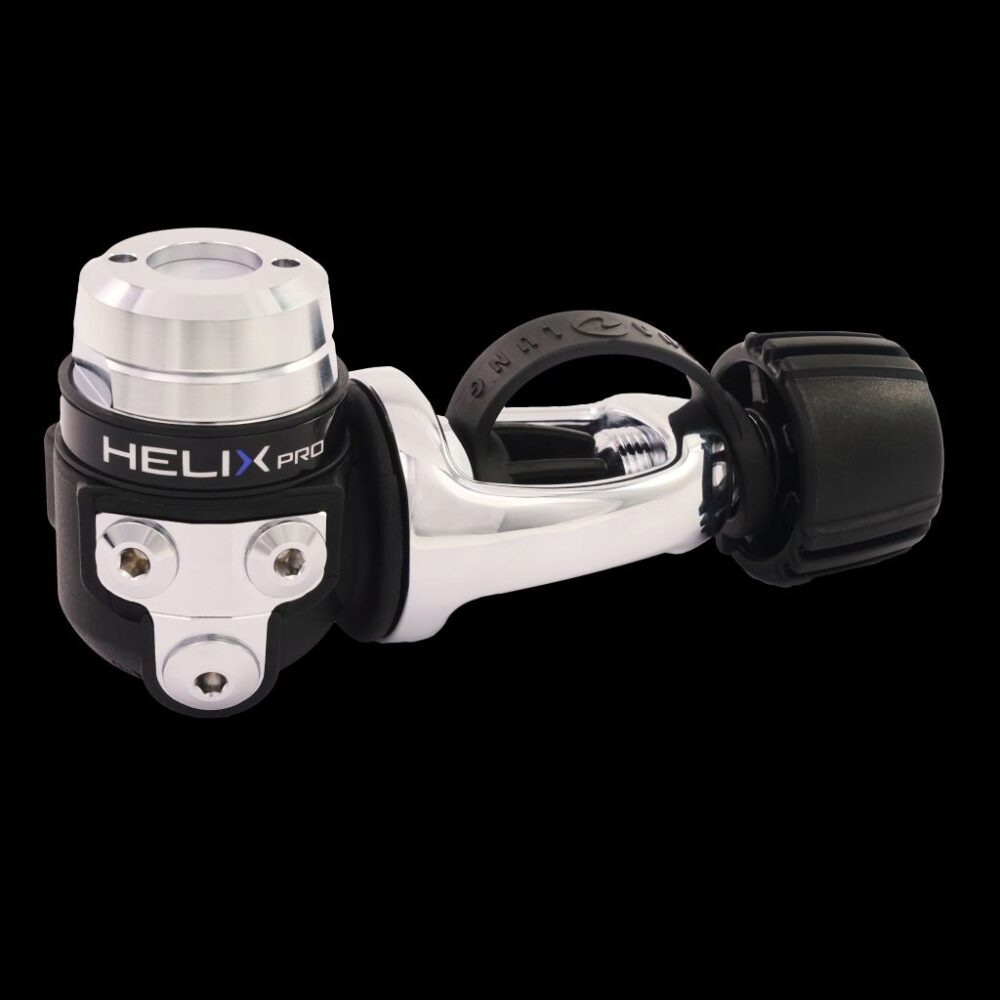

First Stage
Balanced Diaphragm
A balanced diaphragm provides superior, consistent performance
Yoke or DIN
Available in yoke (3,300psi/232 bar max.) or DIN (4,350psi/300 bar max.)
HP/MP Ports and "T" Shape
2 HP ports (7/16”) and 4 MP ports (3/8”), perfectly oriented in a “T” shape for streamlined hose positioning

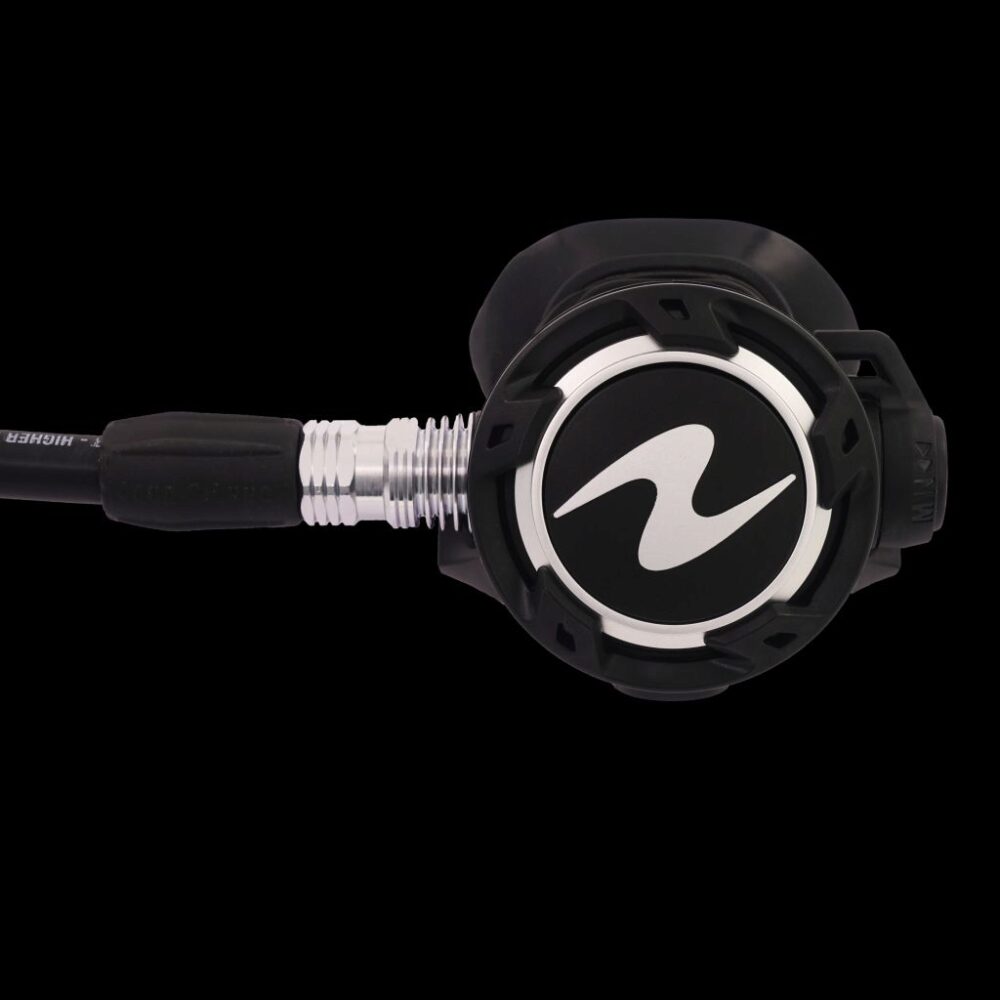

Second Stage
Pneumatically Balanced
Pneumatically balanced for smooth, easy breathing
Heat Exchangers
Help to prevent ice forming on the mechanism
Venturi Knob
Easy control: the in-line ergonomic Venturi knob lets you make precise adjustments, even while wearing gloves
Comfo-Bite
Comfo-Bite mouthpiece is soft yet sturdy and reduces jaw fatigue with its unique palate bridge
The Aqualung Helix Pro is a mid-range regulator that represents the DNA of Aqualung regulators. It is a balanced first and second stage design, offering superior, consistent performance. The regulator features the patented ACD technology that seals water out of the first stage inlet, preventing internal lubrication from washing away and making it safer for elevated percentages of oxygen.
The Helix Pro's balanced diaphragm chrome plated marine brass first stage is fully protected even when the regulator is not under pressure, and it can be serviced every two years. The pneumatically-balanced second stage provides smooth, easy breathing, and the T-shape of the first stage optimizes the location of the four low-pressure (LP) ports and two high-pressure (HP) ports. The regulator is compatible with EAN 40 new, out of the box.
The Helix Pro features an easy-to-grip venturi lever that prevents unwanted free-flow at the surface while giving a performance boost at depth. The heat exchanger (patented) surrounding the valve mechanism dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water. The regulator comes equipped with Aqualung's patented Comfo-Bite mouthpiece installed with a standard bite wing mouthpiece, along with a reusable mouthpiece clamp.
The regulator weighs 33.44 oz (948g) and comes with a 29" (73.7cm) low pressure 3/8" threaded hose and owner's manual. It is available in DIN with a service pressure of 300 bars (4350 psi) maximum. The Helix Pro uses parts that are common to other Aqualung models, making it easier to service. Overall, the Aqualung Helix Pro is a reliable, high-performing regulator that is an excellent value for years to come.
Warranty Information
This product has a limited lifetime warranty.
https://us.aqualung.com/en/warranty-policy.html
760-597-5000
Aqualung Helix Pro Yoke Regulator Features
- Helix Pro Yoke Regulator:
- Mid-Range Regulator
- Balanced First & Second Stage Design
- Part of Aqualung's Core Range
- Comparing Performance w/Price, Helix Is-A-Must-Have!
- Represents DNA of Aqualung Regulators
- Two-Year Service Review Design
- Nitrox Ready Out-of-the-Box
- Patented ACD Technology
- Enhanced Cold Water Design
- Hose: 29" (73.7cm) with 3/8" Threads
- Weight: 33.44 oz (948g)
- Owner's Manual
- First Stage:
- Compact Balanced Diaphragm First Stage
- Inherently Environmentally Sealed to Keep-Out Contaminates
- Chrome Plated Marine Grade Brass Construction
- Auto-Closure Devise (ACD):
Keeps Corrosive Water Out-of-First Stage Inlet
Ensures Top Performance
Added Protection when Rinsing & In-Storage
First Stage Maintains Peak Performance Over-Time
Retains Internal Lubrication Longer
Safer for Nitrox Use - Delicate Internal Parts Not Exposed to Contaminants: Salt, Sand, Chlorine or Pool Acids
- Requires Less-Maintenance
- T-Shape: Less Brass Lighter Weight, More-Compact
- Four, 3/8" UNF LP Ports
- Two, 7/16 UNF HP Ports
- Ports Angled for Optimum Hose Configuration
- Service Pressure: 300 bars (4350 psi)
- Second Stage:
- Pneumatically Balanced Design
- Delivers Gas at Constant Pressure
- Easy Work-of-Breathing
- Breathing Effortless Independent of Depth or Tank Pressure
- Venturi Switch:
Helps Prevent Free-Flow
Works at Surface & when Regulator Out-of-Diver's Mouth
Easy-to-Grip Venturi Lever
Performance Boost at Depth - Heat Exchanger (patented):
Surrounds Valve Mechanism
Dissipates Cold Caused by Gas Expansion
Draws-In Warmth of Ambient Water - Comfo-Bite Mouthpiece Installed
- Mouthpiece Reduce Jaw Fatigue
- Standard w/Bite Wings In-Box
- Reusable Mouthpiece Clamp
