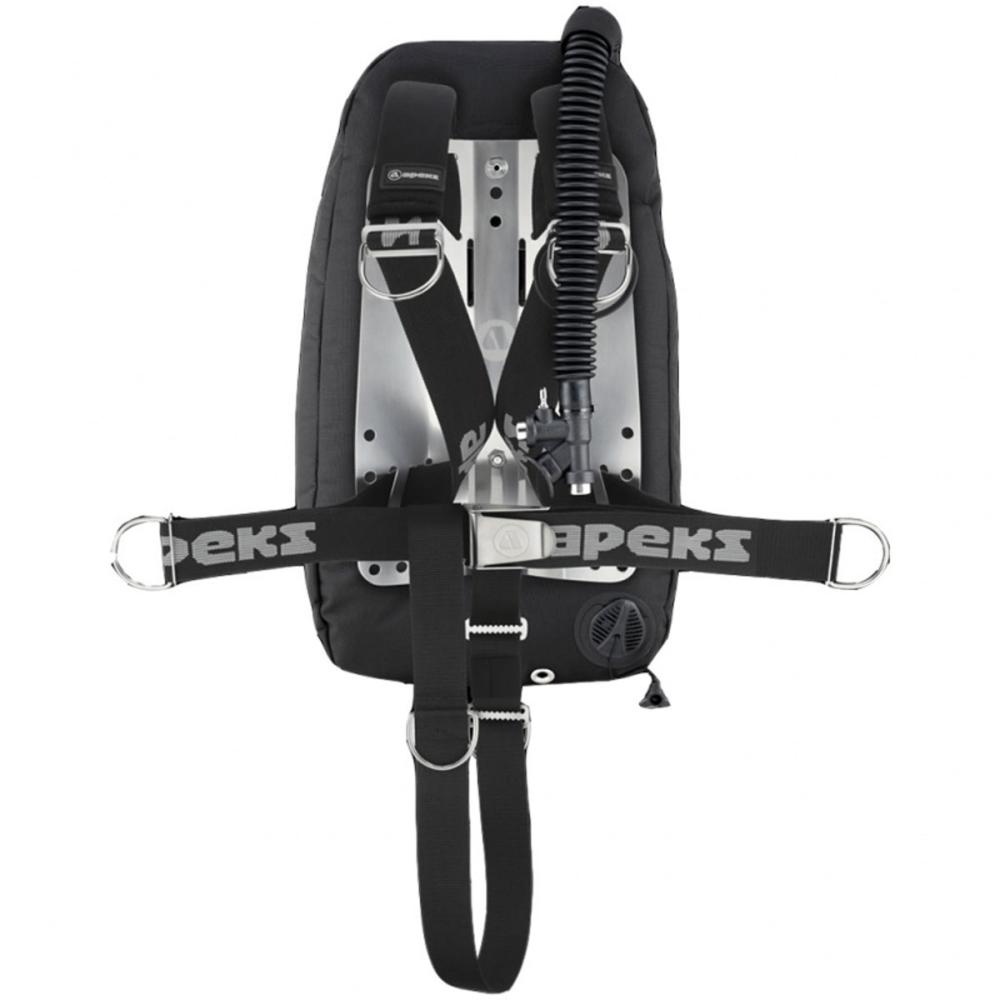

APEKS WTX-D40 + STAINLESS STEEL BACKPLATE

APEKS WTX-D40 + STAINLESS STEEL BACKPLATE

$999.00

Availability: In Stock (1)

Part Number:BT1410110UV Manufacturer: APEKS

APEKS WTX-D40 + STAINLESS BACKPLATE



KEY FEATURES

  • Complete Buoyancy System Rig
  • Lightweight Design
  • Single Cylinder Donut Wing
  • Lift: 40 lbs (18kg)
  • 304 Stainless Steel Backplate
  • Deluxe Harness

See More Product Details



About Apeks WTX-D40 + Stainless Steel Backplate

Whether a seasoned technical diver or someone looking to take their diving to the next level, the Apeks WTX-D40, Deluxe Webbing Harness + Stainless-Steel Backplate Package is fully assembled and ready to dive system. The kit includes: Apeks WTX-D40 Wing, Stainless-Steel Backplate, Deluxe Webbing Harness, Stainless-Steel Hardware Kit, 2 x Griplock Tank Bands and 2 x Book Screws.

The Apeks WTX and WTX-D Series is a selection of harnesses, buoyancy cells and accessories which offer unparalleled versatility due to the modular nature of the entire system. Each component can be configured into a highly technical rig for those trained to push the limits or scaled down to make a travel friendly set up suitable for any diver. Single cylinder wings, often referred to as donuts, are oval shaped air cells or bladders that are not permanently attached to a harness. While single cylinder wings have their origins in the realm of technical diving, they are becoming very popular in the recreational community. Not only are these single cylinder wings streamlined, but due to their shape being a continuous loop, they are very stable underwater. There is no dramatic shift of air from left to right.

Apeks single cylinder wings are a smart design that allows a cylinder to nest deep inside them. These wings mate up nicely to the rest of the Apeks WTX collection of high-quality harnesses, plates and accessories. They can be configured in multiple ways to match the type of diving that you do. As with the rest of the WTX collection, these single cylinder wings are built from the finest quality materials. They are designed by Apeks and built in their own factory. Wing comes with a K-style inflator equipped with brass buttons and a 3/8" threaded quick-disconnect hose. The corrugated inflator hose measures 16" (40.6cm) and is an oval-shaped low-profile design. A safety cable in the hose prevents hyper-extension while diving. Inflator is positioned on the off-center so as not to interfere with the regulator first stage.

For managing buoyancy trim the wing has a low-profile flat dump/overpressure relief valve positioned in front, lower-left side. High-efficiency drains to drain water quickly, central mesh panel + 2 grommet. Access zipper is located on front side to prevent abrasion from cylinders and tank bands. Exterior is made from 1000D Armor-Shield Cordura with the inner bladder manufactured from 22ml. (.022") thick black urethane. The zipper bladder access closure is a heavy duty YKK #10 plastic zip and slide. Donut has tank stabilizer bars for added cylinder stability. Wing comes in a 40 lbs (18kg) lift capacity.

The Apeks Deluxe Webbing Harness is a simple, yet strong, harness that can take the load of a fully rigged technical diver and can be easily customized with the hardware of your choice. Harness consists of a 12' x 2" (366cm x 2cm) webbing with center grommet, 2" (5cm) wide crotch strap, and 6 stainless 2" (5cm) D-rings. Also includes neoprene shoulder protectors, 2 elastic retaining loops on shoulders and one on crotch strap, heavy duty stainless waist buckle, and 6 stainless steel serrated retainers.

The backbone of any system - this cleverly designed backplate can be used with the Apeks Deluxe One-Piece Webbed Harness. Backplate is made from 304 stainless steel and weighs 4.7 lbs (2.15kg). Plate has 4 each upper and lower slots that accommodate nylon cylinder bands so a single cylinder can be strapped directly to the plate. Having a series of 4 slots provides lateral stability of the cylinder that traditional 2 slot plates cannot. 3 holes at the top of the plate offer a range of height adjustments for the buoyancy cells and the cylinders. In addition, a corresponding lower center slot allows for lower band bolts that are misaligned. Plates are equipped with a 2" (5cm) wide crotch strap slot. Upper and lower perimeter holes along either side and holes along the bottom allow for the mounting of accessories. Backplate offers an electro-plate finish and a laser-etched Apeks logo to enhance the look of the plate.

The Grip-Lock tank band assemblies are the easy and safe solution for securing a cylinder to a BC. With its (pat. Pend.) finger-saver feature and macro presets, it solves many of the common problems associated with metal cam buckles. Find out how easy it is to use Grip-Lock. The innovative stainless-steel cam buckle Finger-Saver feature makes the Grip-Lock safe by eliminating painful, pinched fingers. The macro-adjustment is set just once until you change to a cylinder with a different diameter. Three presets cover the various diameter cylinders in the field today. The micro-adjustment can be used for fine-tuning the fit after the band is on the cylinder. Hint: If you line up the inside edges of the hook and loop on the micro adjustment side of the tank band, it will be perfectly set for an aluminum 80 cylinder. Rubber traction pad on the backside of the Grip-Lock provides added security.

Book screws can be used to attach a wing to a back plate or to anchor an accessory to a back plate. Each kit comes with two complete sets of mating book screws with friction O-rings. Two different lengths are available, 3/8" or 3/4" depending upon your application. Screws are made from corrosion resistant stainless-steel.

This product can only be shipped to U.S. addresses.







Warranty Information

This product has a limited warranty of 60 months.

https://us.apeksdiving.com/en/warranty/warranty-policy.html


760-597-5000



Apeks WTX-D40 + Stainless Steel Backplate Features

  • WTX-D40 + Stainless Steel Backplate Package:
  • Complete Air Cell, Harness w/Backplate System
  • Includes Hardware Kit & Book Screws
  • Lightweight Design
  • When You Buy Apeks, Rest Assured You're Buying the Best Product Available
  • WTX Single Cylinder Donut Wing:
  • Single Cylinder Wings, Referred-to-As Donuts
  • Oval Shaped Air Cells or Bladders
  • Not Permanently Attached to Harness
  • Popular w/Technical & Recreational Diving Communities
  • Streamlined & Stable Underwater
  • No Dramatic Shift of Air from Left to Right
  • Smart Design: Allows Cylinder to Nest Deep-Inside-Wing
  • Mates Up Nicely to Apeks WTX Collection Harnesses, Plates & Accessories
  • Can-Be-Configured In-Multiple Ways to Match Your Type of Diving
  • Built from Finest Quality Materials
  • Designed by Apeks & Built i Their Own Factory
  • Drainage: Central Mesh Panel + 2 Grommet
  • Lift: 40 lbs (18kg)
  • High-Efficiency Drains to Drain Water Quickly
  • Access Zipper Located On-Front Side to Prevent Abrasion
  • Inflator:
  • K Style w/Brass Buttons
  • Low Profile 16" (40.6cm) Oval-Shaped Hose
  • Safety Cable to Prevent Hyper-Extension
  • Positioned Off-Center Won't Interfere w/Regulator 1'st-Stage
  • 3/8" Threaded Quick-Disconnect Hose
  • Dump Valve:
  • Low Profile Flat Overpressure Valve
  • Pull Cord for Trimming Buoyancy
  • Positioned In-Front, Lower-Left Side
  • Materials:
  • Exterior: 1000D Armor-Shield Cordura
  • Inner Air Cell: 22mil (.022) Thick Black Urethane
  • Zipper: Heavy Duty YKK #10 Plastic Zip and Slide
  • Deluxe Webbed Harness:
  • Simple, Yet Strong, Harness
  • Can Take Load of Fully Rigged Technical Diver
  • Easily Customized w/Hardware of Choice
  • 12' x 2" (366cm x 2cm) Webbing w/Center Grommet
  • 2" (5cm) Wide Crotch Strap
  • 6 Stainless 2" (5cm) D-Rings
  • Neoprene Shoulder Protectors
  • 2 Elastic Retaining Loops On-Shoulders & 1-On Crotch Strap
  • Heavy Duty Stainless Waist Buckle
  • 6 Stainless Steel Serrated Retainers
  • Backplate:
  • Unparalleled Versatility, Modular Nature of System
  • Backbone of Any System
  • Cleverly Designed Backplate
  • 304 Stainless Steel
  • Weight: 4.7 lbs (2.15kg)
  • 4 Each Upper & Lower Slots, Accommodate Nylon Cylinder Bands
  • Single or Dual Cylinder Compatibility
  • 4 Slots Provide Lateral Stability of Cylinder
  • 3 Holes at Top of Plate:
    Offer Range of Height Adjustments
    Allows Adjustment for Buoyancy Cells & Cylinders
  • Lower Center Slot Allows for Misaligned Lower Band Bolts
  • 2" (5cm) Wide Crotch Strap Slot
  • Upper & Lower Perimeter Holes:
    Holes Along Either Side & Bottom
    Allow for Multiple Accessory Mounting
  • Electro-Plate Finish & Laser-Etched Apeks Logo: Enhance Look of Plate
  • Grip-Lock Tank Band Assembly:
  • Stainless-Steel Cam Buckle
  • Easy & Safe Solution for Securing Cylinder to BC
  • Pat. Pend. Finger-Saver: Makes Grip-Lock Safe by Eliminating Painful, Pinched Fingers
  • Macro-Adjustment: Set Once Until You Change Cylinder w/Different Diameter
  • 3-Presets: Cover Various Diameter Cylinders In-the-Field Today
  • Micro-Adjustment Can-Be-Used for Fine-Tuning Band-On-Cylinder
  • Rubber Traction Pad Provides Added Security
  • Book Screws:
  • Attach Various Accessories to Back-Plate
  • Two Complete Set, Male & Female
  • Stainless Steel, Non-Rusting Construction
  • Available in 3/8" or 3/4" Depending Upon Application
  • Includes Friction O-Rings
